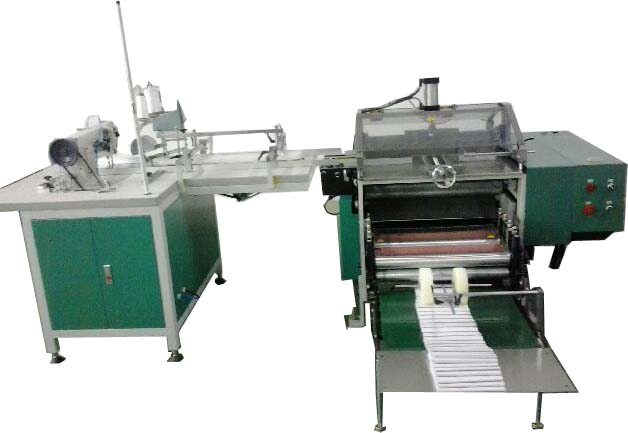

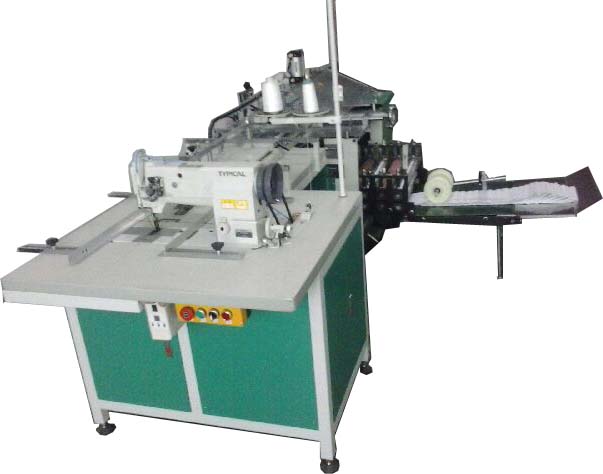

Name: LJ701 Book Central Threading & Folding Machine
Model: LJ701
Place of origin: Dongguan
video : http://v.youku.com/v_show/id_XODc4NDgzMzIw.html
http://player.youku.com/player.php/sid/XODc4NDgzMzIw/v.swf
Specifications:
LJ701 Book Central Threading and folding machine is special used for making
cental threading style books. This is new machine in the market, and it could
instead of Saddle Stitching machine to binding notebooks, exercise books,
account books, etc by threading. It can thread very thick books easily with high
production capacity. fast speed, stable performance. It is with multi functions on
line: Manual book feeding, automatic central sewing, automatic thread cutting,
automatic folding, and automatic book pressing, It is the the ideal and first-choice
equipment for mess productions in paper stationary products factories.
Feature:
1. Working speed 800-1800 books per hour.
2. Sewing pitch can adjustable.
3. Suitable for sewing style binding works of notebooks, manual, exercise books
etc.
4. Simple operation and easy to learn.
5. Machine used high sensitivity optical fiber sensor, Automatic sewing without
manual step On/ Off.
6. Sewing wire can automatically cutting between books.
7. Books sewing and folding on completed.
8. Machine running much higher speed than traditional labour. Much lower cost
and much stable stitching.
主要技術(shù)參數(shù)：
Model LJ701
Max. Paper Size 600*470mm
Working Speed 800-1800pcs/ hour
Power
380V/ 3Phase/ 50Hz/ 60Hz/ 5.2Kw
Air Compressor(Customer Supplied) 1.5Kw
Atmospheric Pressure 6-8Pa
Demisions 2830*1850*1580mm
Net Weight 1000kg
About LiJia Comany:
Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in
Chang’an Town, Dongguan city, Guangdong province, China
professional producing of post-press finishing manufacturer in China, Our main
products are Hardcover Cashing-in machine, book block rounding machine,
Book block rounding machine, Book block ridging machine, book pressing
machine, Hydraulic book packing machine, paperboard slitter, paperboard cross
cutter machine and so on.
Since established, Our Company always adhere of “Best service, Best quality”
the core idea. And strive to bring customers the best quality and best service.
The company development and design's product, like Book Block Rounding
Machine, book block ridge machine, hydraulic cutting two horns machine and
other products are domestic initiative, Has been successfully applied for national
patents, was the best cost-effective in the similar products. Also can make to
order as each kind of machine according to the customer’s requirement.
We will continue to be customer oriented, TO the best quality and service to win
the trust of customers and work!
Contact us:
